TOTP: How the One-Time Code System Works

The one-picture version

1 · A service turns on 2FA
OpenAI, Google, GitHub — the "Connect your authenticator app" dialog

↓

2 · It shows the secret in one of two costumes
a QR code or a text string ("Trouble scanning" / "Copy code").
Same secret. The QR is just the text wearing a picture.

↓

3 · Capture it on the way in
Best: click Copy code and grab the text.
Or: screenshot the full QR and run zbarimg on it.

↓

4 · The NAME and the SEED go up to AWS — nothing else
The name is the parameter path: /totp/<Issuer>/<user>.
The seed is the SecureString value stored at that path.
Name = how I find it later. Seed = what I find.

↓

5 · Codes are computed, never stored
HMAC-SHA1(seed, floor(now / 30)) → 6 digits.
The service runs the same math with the same seed — that is the whole trick.

Both sides share the seed once, at setup. After that nothing is ever transmitted: my machine and their server each hash the seed against the clock every 30 seconds and independently arrive at the same 6 digits.

The QR code is just the secret

Decode any setup QR and you get an otpauth:// URL:

otpauth://totp/OpenAI:ojhurst@gmail.com?secret=BASE32SEEDGOESHERE&issuer=OpenAI

Everything is right there: the issuer, the account, and secret= — the seed itself. The two views of the same dialog prove it:

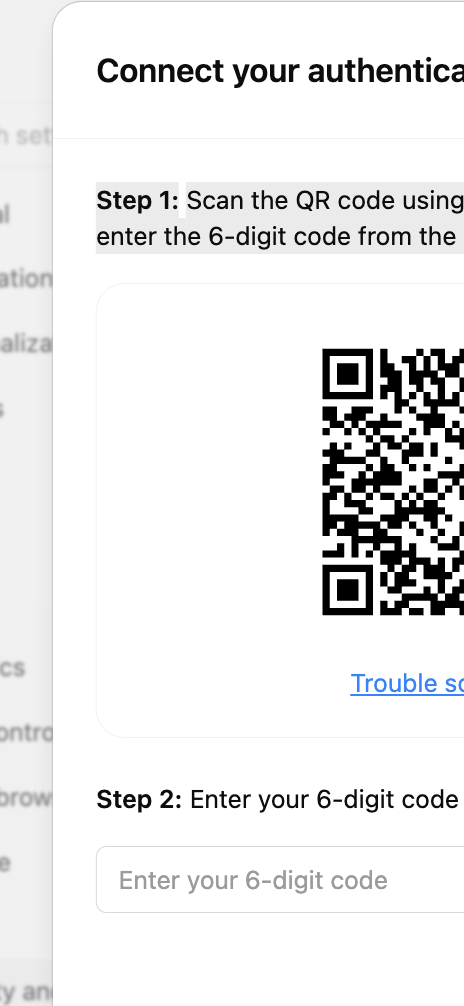

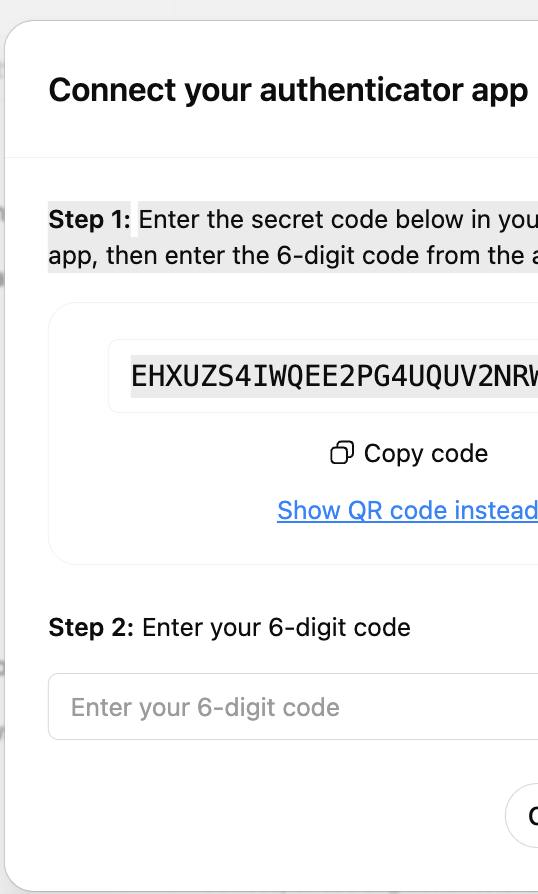

The QR costume	The text costume

So on the way in — while enrolling — I never need a phone. Click “Trouble scanning” or “Copy code” to get the raw secret, or decode the QR locally:

zbarimg --raw -q screenshot-of-qr.png

Which part goes up to AWS

Two things, packed into one parameter: the name and the seed. The name (issuer + account) becomes the parameter path — that is how I find it next time. The seed becomes the SecureString value stored at that path — that is what I find. Both come straight out of the otpauth:// URL: issuer and the account label form the path, secret= is the value.

Artifact	Goes to AWS?	Why
QR code image	No	It IS the seed in costume. Decode it, then delete the screenshot.
`otpauth://` URL	No	Contains everything as one string. Split it: name → path, secret → value, discard the rest.
The name (issuer + account)	Yes — as the parameter path	`/totp/OpenAI/ojhurst-at-gmail.com`. Without it the seed is an anonymous string I can never match to a login.
The seed (base32 string)	Yes — as the SecureString value	The one durable secret. Everything regenerates from it, forever.
6-digit codes	No	Derived on demand, worthless after 30 seconds. Storing one is storing a puff of smoke.

Storage convention — one parameter per account, SecureString:

aws ssm put-parameter --name "/totp/OpenAI/ojhurst-at-gmail.com" \
  --value "$SEED" --type SecureString --overwrite --profile claude-creds-writer

Read one back (never echo it to a transcript):

SEED=$(~/apps/cc/bin/aws-secret /totp/OpenAI/ojhurst-at-gmail.com)

List what exists:

aws ssm get-parameters-by-path --path /totp --recursive \
  --profile claude-creds-reader --query 'Parameters[].Name' --output text

Turning the seed into codes

The generator lives in ~/apps/agent-totp/:

~/apps/cc/bin/aws-secret /totp/OpenAI/ojhurst-at-gmail.com | \
  python3 ~/apps/agent-totp/generate-code.py --remaining

--remaining shows how many seconds until the code rolls over — useful when an automation needs the code to survive a form submit. The math is three lines of standard library; pyotp just wraps it. Any machine with the seed and a correct clock produces correct codes.

Google Authenticator bulk export

The phone app holds nothing magic — just a list of seeds. “Transfer accounts → Export accounts” packs them into QR codes, roughly 10 accounts per page (“1 of 2”, “2 of 2”). Each page is a protobuf blob containing every account’s name, issuer, and seed.

python3 ~/apps/agent-totp/decode-export.py page1.png page2.png

That outputs JSON with every seed, ready to store at /totp/<Issuer>/<user>. decode-export.py handles both the protobuf export format and plain otpauth:// setup QRs. Full walkthrough: the README in ~/apps/agent-totp/.

Gotchas

The setup dialog mints a fresh secret every time it opens. Enroll with the last secret shown, not one screenshotted earlier. Precedent: 2026-08-28, re-enrolling OpenAI — the QR screenshotted at 2:28 PM and the text view at 2:59 PM were two different secrets. The first was already dead.
Cropped screenshots do not decode. zbarimg needs the complete QR square. A half-QR is unrecoverable.
QR screenshots are secrets. Once the seed is decoded and stored, delete the screenshot — it holds the same seed in scannable form.
Codes depend on the clock. A machine minutes off NTP generates wrong codes that look right.

Generator + decoder repo: ~/apps/agent-totp/ (its README is the operational setup SOP)
Handling Secrets — the general rules for keeping values out of transcripts and git
Parameter Store read/write helpers: ~/apps/cc/bin/aws-secret, ~/apps/cc/bin/ask-secret-aws.sh
